ABS Digimatic Indicator ID-S Series

Simple, cost-effective and easy-to-use Digimatic Indicators. Choose long-life battery or everlasting solar powered models.

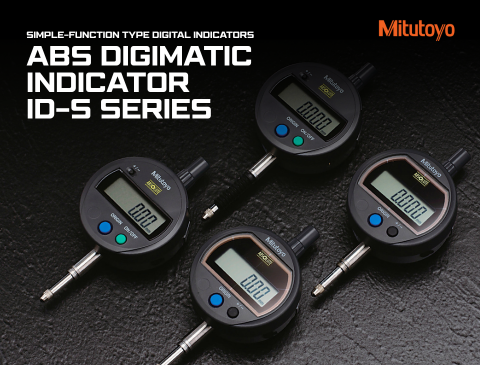

The ID-S series of ABS Digimatic indicators is made up of single-function type digital indicators: the ID-SS, which is the world’s first solar-powered Digimatic indicator, and the ID-SX, which is powered by a button-type battery.These Digimatic indicators have a measuring range of 12.7 mm, and indicators that can display resolutions of 0.01 mm and 0.001 mm are included in the lineup. For the ID-SX, some of models are available and provide IP53* dust/water protection level specifications. All the Digimatic indicators in this series are compact, with approximately the same size as a standard dial indicator. They employ large liquid crystal displays with character heights of 9 mm, and the large buttons are easy to press and make all the functions easy to operate. Furthermore, even though these models are priced competitively, the Digimatic data output function makes it possible to use them in statistical process control, networked measurement, and other similar systems.



Compact design  ABS (absolute) sensor

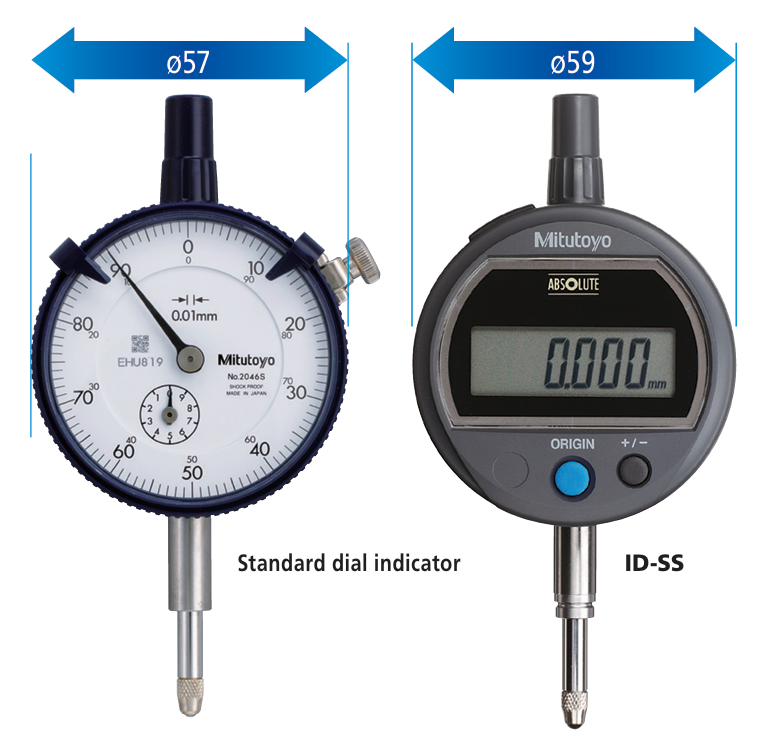

These compact Digimatic indicators are approximately the same size as a standard dial indicator, so they can easily be used to replace such indicators. The solar-powered ID-SS eliminates the need for battery replacement, so just as with dial indicators there is no fear of the instrument losing power at an inconvenient time.

These Digimatic indicators employ Mitutoyo’s proprietary ABS (absolute) sensor, which makes it possible to restore the origin point even if the power is turned off. This eliminates the need to perform origin matching each time the power is turned on. Furthermore, this sensor ensures that overspeed errors do not occur, which improves reliability.
 Large liquid crystal display Plunger lifting and a rich variety of accessories

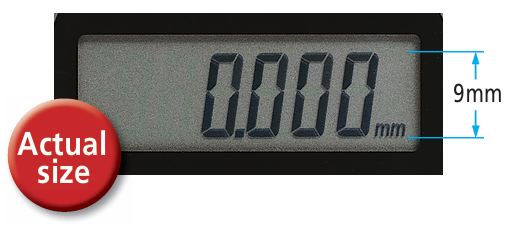

These Digimatic indicators use large liquid crystal digital displays with a large character height (9 mm) for easy visibility.

To take account of the wide application range of these indicators, we have provided three types of lifting accessories (options) to match different uses. Furthermore, we have provided a rich variety of contact points, stands, data processing-related parts, and other accessories.

Optional accessories
Large pushbuttons  Inspection certificate included as standard

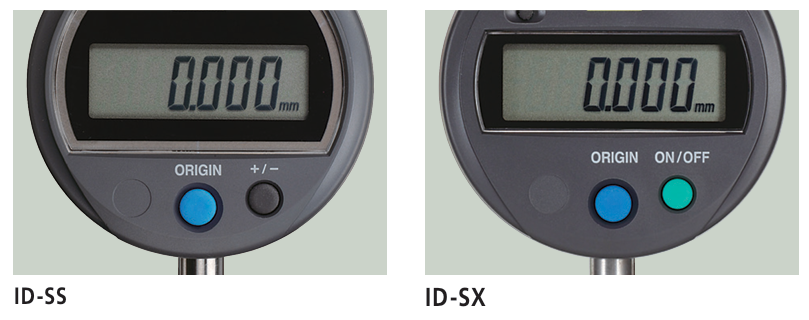

These Digimatic indicators feature large, easy-to-use pushbuttons that provide the user with direct access to the minimal functionality set.

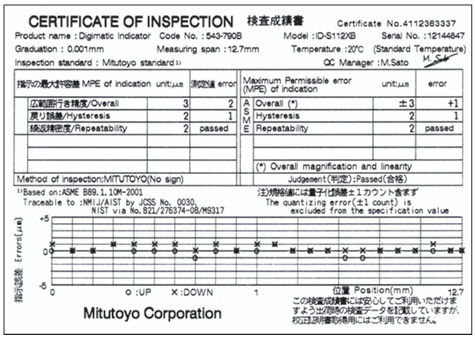

 • An inspection certificate on which the inspection data at the time of shipment is written is included as standard. (The inspection certificate cannot be used to acquire calibration certificates because the date of purchase cannot be specified on the inspection certificate.)
 • For a fee, Mitutoyo can calibrate measuring equipment and issue a calibration certificate providing proof of traceability with the standard used during the calibration. Contact Mitutoyo for details.

ABS Solar-Powered Digimatic Indicator ID-SS

Power supply
Environmentally friendly solar model does not require batteries, eliminating the hassle and cost of battery replacement. Can operate approximately 3.5 hours on a full charge, even in minimal light conditions of 40 lux. 		 Origin recorded even if display disappears
The indicator includes an ABS (absolute) sensor that allows the previously set origin to be restored even if the display disappears due to insufficient light. This feature makes ID-SS ideal for extended measurement sessions.

Large reserve power capacity
A large reserve of power (when fully charged) enables you to use the indicator for long periods of time under light conditions below the minimum level.
(Can be used for approx. 3.5 hours on a full charge.)

Common specifications
 Display:  6-digit LCD, sign
 Contact point:  Spherical tip SR = 1.5 mm (carbide tipped)
      Part No. 901312 (for ISO/JIS/DIN Type)
      Part No. 21BZB005 (for ASME/ANSI/AGD Type)
Measuring force: 1.5 N or lower
Usable orientation:  All
Power supply:  Solar cell (for indoor use)
Minimum operating light:  40lux
Reserve capacity allows a fully charged ID-SS to be used for about 3.5 hours under light conditions below the minimum level. Charging time required depends on the environment, but it usually takes about 1.5 hours for a fully discharged ID-SS to fully recharge under light conditions of 500lux.

Maximum response speed:  No limit (scan-type measurement is not supported)
 Operating temperature range:  0 to 40ºC
 Storage temperature range: -10 to 60ºC

 Features
Origin set (zero-set):   The display can be zeroed at any chosen position.Direction switching:  The measuring direction can be switched. in/mm reading (inch/mm models only)
Measurement data output: These indicators have a measurement  data output socket, which makes it possible to output Digimatic data to the DP-1VR mini processor or to a PC through an input tool. Furthermore, the U-WAVE measurement data wireless communication system can be used to wirelessly input measurement data to a PC.
Error warning

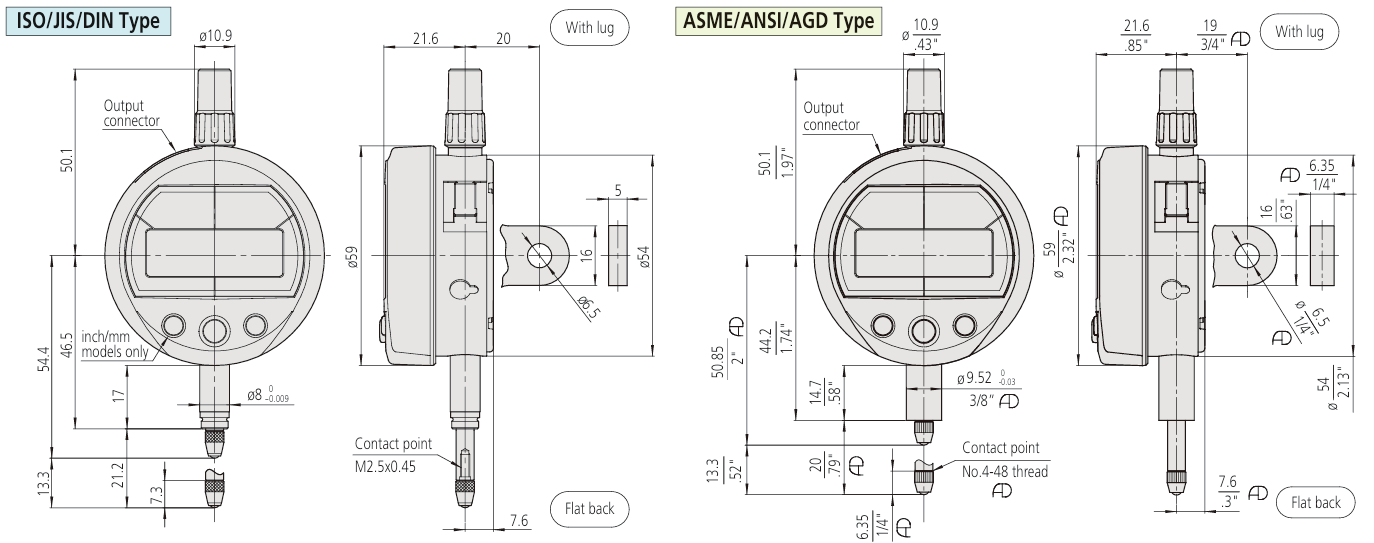

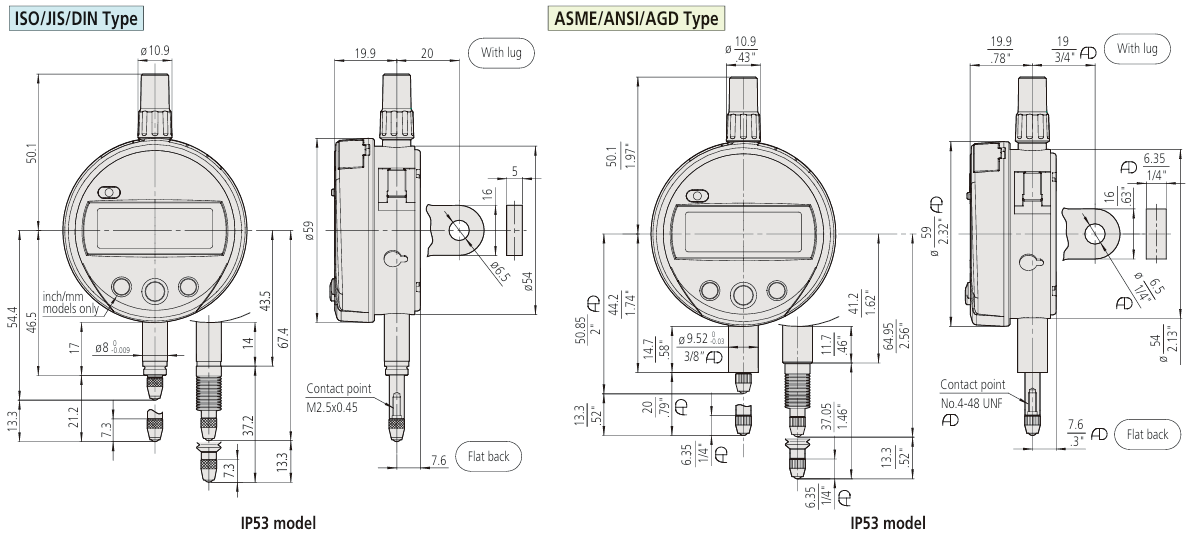

Dimensions



ABS Digimatic Indicator ID-SX

Type emphasizing cost performance

This indicator uses a button-type battery (SR44), stresses ease of use, and comes with the minimum of functionality. lndicators that can display measurements at resolutions of 0.01 mm and 0.001 mm are included in the lineup.

ABS (absolute) sensor

These Digimatic indicators employ Mitutoyo’s proprietary ABS (absolute) sensor, which makes it possible to restore the origin point even if the power is turned off. This eliminates the need to perform origin matching each time the power is turned on. Furthermore, this sensor ensures that overspeed errors do not occur, which improves reliability.

Long battery life
One button battery (SR44) provides approximately 20,000 hours of continuous use for resolution .0005”/0.01mm models.

Common specifications
 Display:  6-digit LCD, sign
 Contact point: Spherical tip SR = 1.5 mm (carbide tipped)
 part No. 901312 (for ISO/JIS/DIN Type), part No. 21BZB005 (for ASME/ANSI/AGD Type)
 Usable orientation:  All
 Power supply:  SR44, part No. 938882
 Maximum response speed:  No limit (scan-type measurement is not supported)
 Operating temperature range:  0 to 40ºC
 Storage temperature range: -10 to 60ºC		 Features
Origin set (zero-set):   The display can be zeroed  at any chosen position.Direction switching:   The measuring direction can be switched.in/mm reading (inch/mm models only)
Measurement data output: These indicators have a measurement data output socket, which makes it possible to output measurement to the DP-1VR mini processor or to a PC through an input tool. Furthermore, the U-WAVE measurement data wireless communication system can be used to wirelessly
input measurement data to a PC.
Error warning
